Bioseb DECRO Solution

Reference : DECRO
Category : Physiology & Respiratory Research

Real-Time Physiological Monitoring for Small Animals – Wireless & Non-Invasive

The Bioseb DECRO Solution offers a fully wireless, non-invasive telemetry system specifically designed for real-time monitoring of physiological parameters in rats. The system enables the measurement of Respiratory function, ECG, and Activity levels in up to 8 rats simultaneously, without surgery or restraint. The DECRO platform is easy to set up, and ensures reliable real time data collection for both short- and long-term studies.

Brochure

icone-pres.gif Presentation

The Bioseb DECRO platform combines advanced telemetry technology with a vest system made of soft, comfortable, and durable material, available in various sizes for rats weighing between 220 and 750 grams. The 15-gram Bluetooth transmitter is carried in the vest’s backpack.

The vests integrate 2 plethysmographic sensors, 2 external ECG electrodes and a 3D accelerometer to continuously capture Respiratory function, ECG and derivated calculus and locomotor activity, all without restricting the animal's movement and without any surgery on the animal.



icone-oper.gifOperating principle

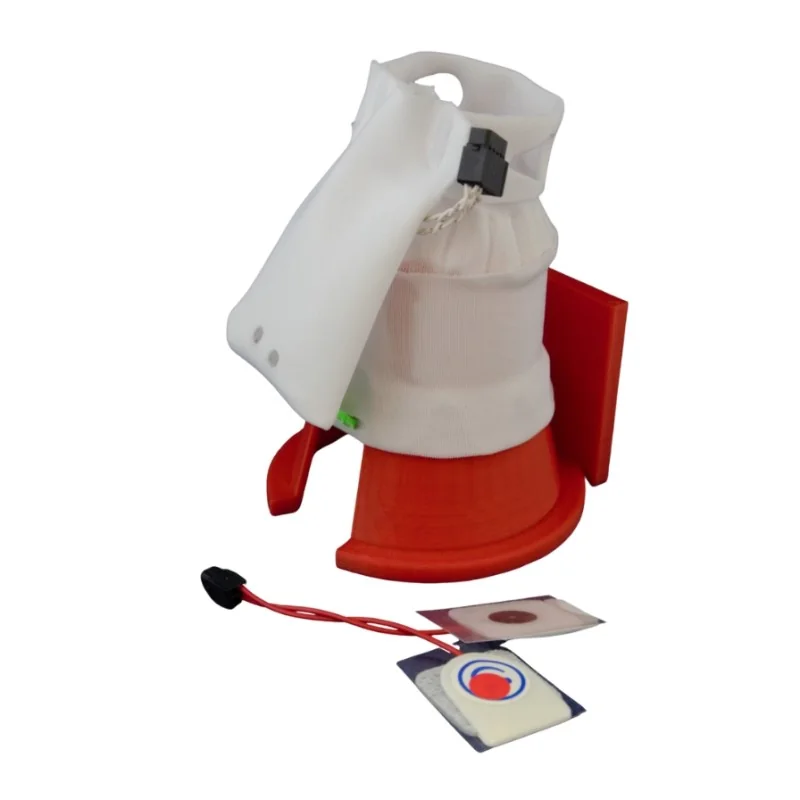

The Bioseb DECRO solution consists of an ultra-light 15g vest embedded with sensors, which is comfortably fitted on the animal. The vest can easily be placed on the animal with a dedicated tool (funnel-shaped fitting tubes) in less than 10 minutes.

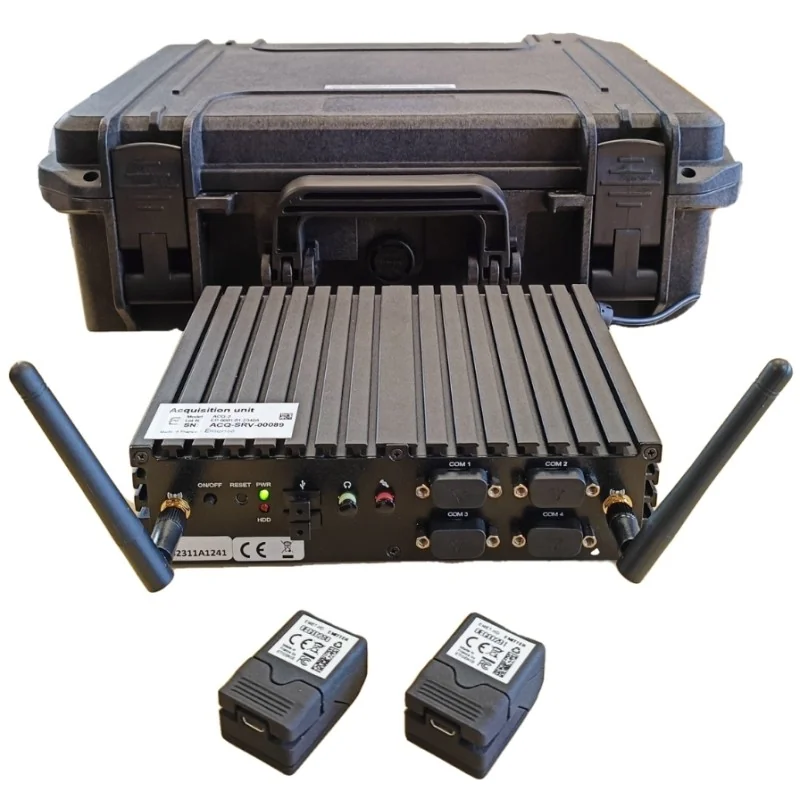

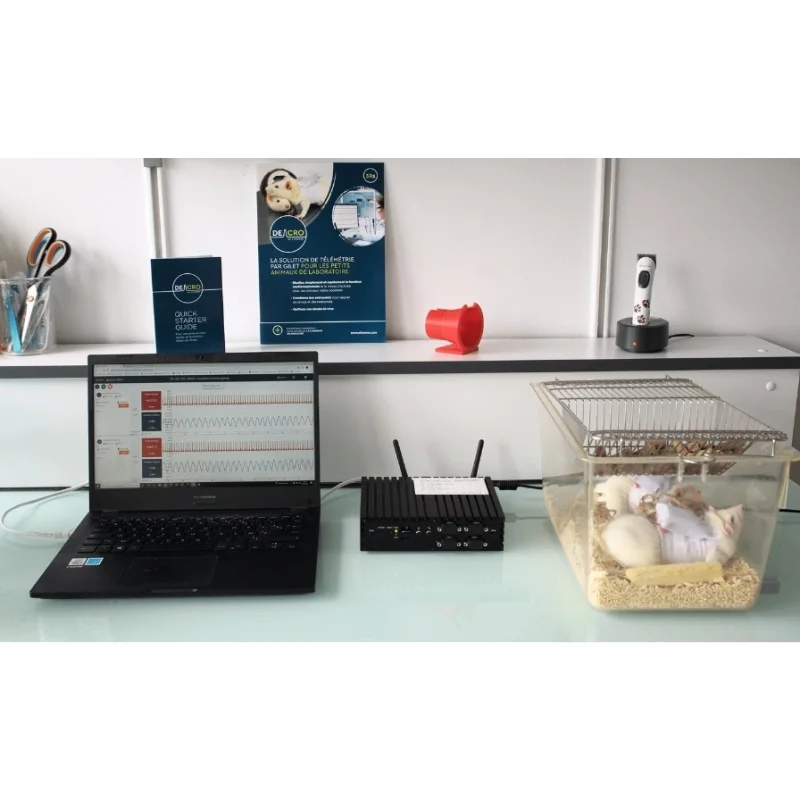

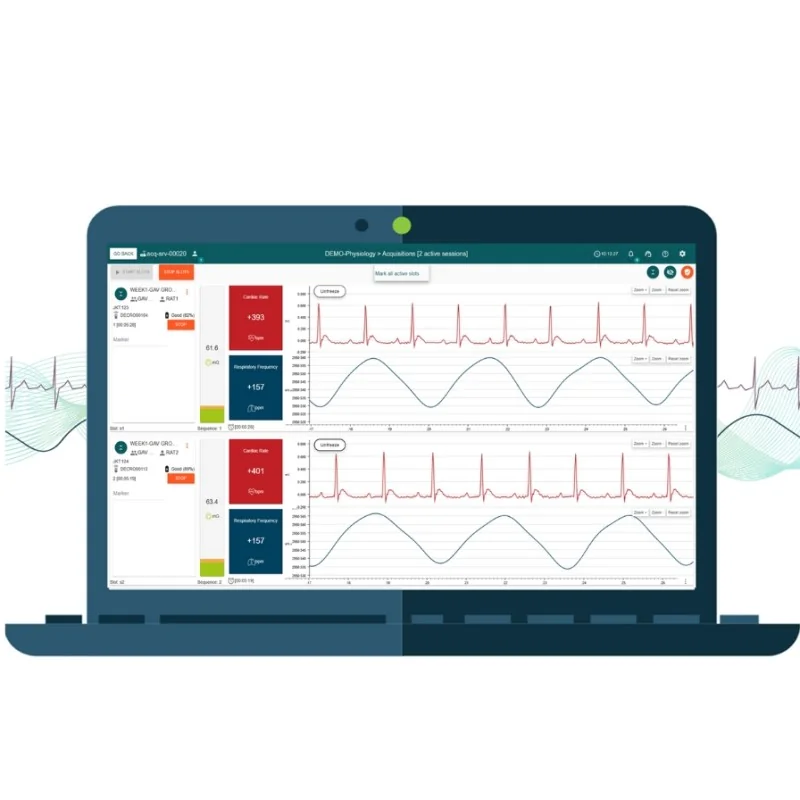

Physiological signals (ECG, respiratory cycles and 3D movement) are transmitted wirelessly (Bluetooth) to a dedicated small receiver, with a range of up to 10 meters. The receiver unit is directly connected with the computer thanks to the dedicated LASA software, for result processing and analysis.

The vest features a built-in battery offering up to 12 hours of continuous use, with extended duration in programmed mode. Recharging is easily done via a USB cable in less than 3 hours.

DECRO

Data sheet

Integrated Sensors
1x 3-axis accelerometer
2x ECG Electrodes
2x Inductive Plethysmography Bands
Sampling Frequency
3D acceleration: 16bits - 12,5Hz
Inductive respiratory plethysmography: 200Hz - 32 bits
Surface ECG: 500Hz - 24 bits
Battery Life
12 hours in continuous mode
Wireless Transmission Range
up to 10 meters
Battery Charging
Micro USB, full charge in 3 hours
Animal Fit
15g Ultra-light vests available in various sizes for rats between 220 and 700g
