Circular Pool

Presentation

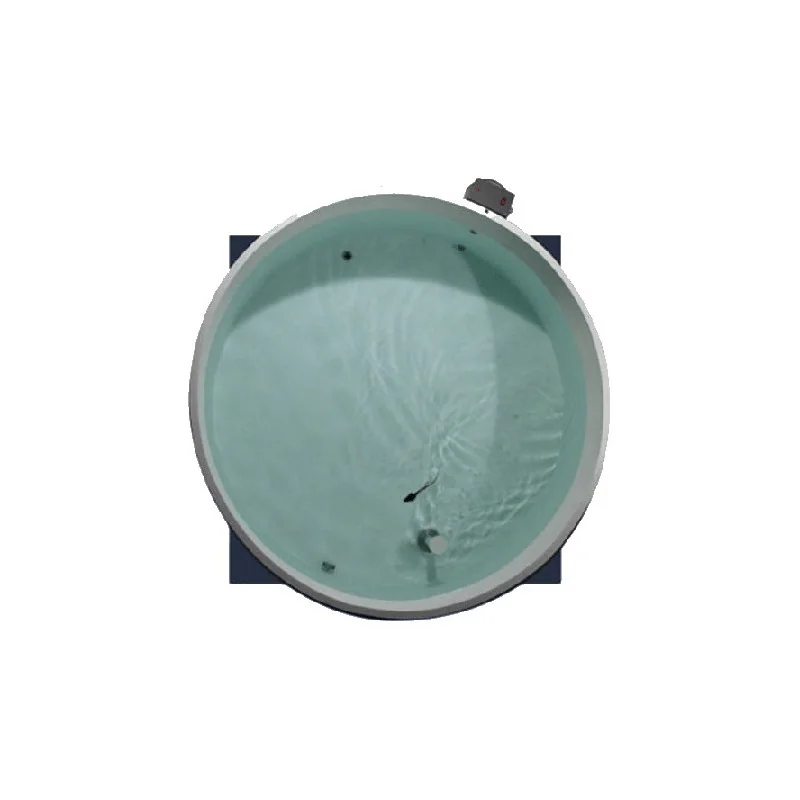

The BIOSEB circular pool provides the ideal environment to carry out the Morris and Radial Water Maze tests for the study of memory in rodents.


Operating principle

The circular pool is manufactured in polypropylene and stands on a support with 4 wheels for easier displacement.
BIOSEB proposes a complete solution for water maze settings since the heater, the water circulation pump, the level controller and the electro valve for pool filling are contained in a unique control box. The level controller acts directly on the Electro Valve, turning it off when the liquid arrives to the corresponding height. The water temperature is thermostated between 22 and 32 degrees depending on the environmental room temperature.

For Morris Water Maze Test, 2 easily interchangeable platforms are supplied (80 and 110 mm) that can be located anywhere in the pool.
For Radial Water Maze, a removable-floating eight radial-arm maze structure and associated platforms can be provided upon request.

Both Morris and Radial Water Mazes may be associated with the SMART Video-Tracking system for detection and analysis of animal displacements and behaviour throughout the test.


Parameters Measured

(Parameters provided by the associated video-tracking system)
• Latency time to raise the target/platform (SMART for Morris water maze)
• Permanence time and distance travelled in each user-defined quadrants (SMART for Morris water maze)
• Total distance travelled (SMART for Morris and radial water maze)
• Wishaw's error (SMART for Morris water maze)
• Mean directionality (SMART for Morris water maze)
• Average distance to the target/platform (SMART for Morris water maze)
• Latency time to the first entrance into the target/platform (SMART for Morris water maze)
• Stopping time on the target/platform (SMART for Morris water maze)
• Target/platform crossings (SMART for Morris water maze)
• Resting/Floating time with user-defined threshold (SMART for Morris water maze)
• Permanence time in each arm (SMART for radial maze test)
• Number of entries into each arm (SMART for radial maze test)
• Chronological sequence of the visits in the arms (SMART for radial maze test)
• Distance travelled in each arm (SMART for radial maze test)


Key features

• Polyproylene pool
• Complete system, all in one station (water pump, thermostat and tubing all included)
• Control box controlling the water temperature (thermostated between 22-32 degree depending of the environmental conditions)
• Easily adaptable platform size depending of the animal size
• Support with 4 wheels for better displacement


Supplied with

• Circular pool with support (with wheels for easier displacement)
• Water pump
• Heater
• Electrovalve
• Level controller
• Set of 2 spare fuses
